Setup ZeroTier on router (OPENWRT)
Installation

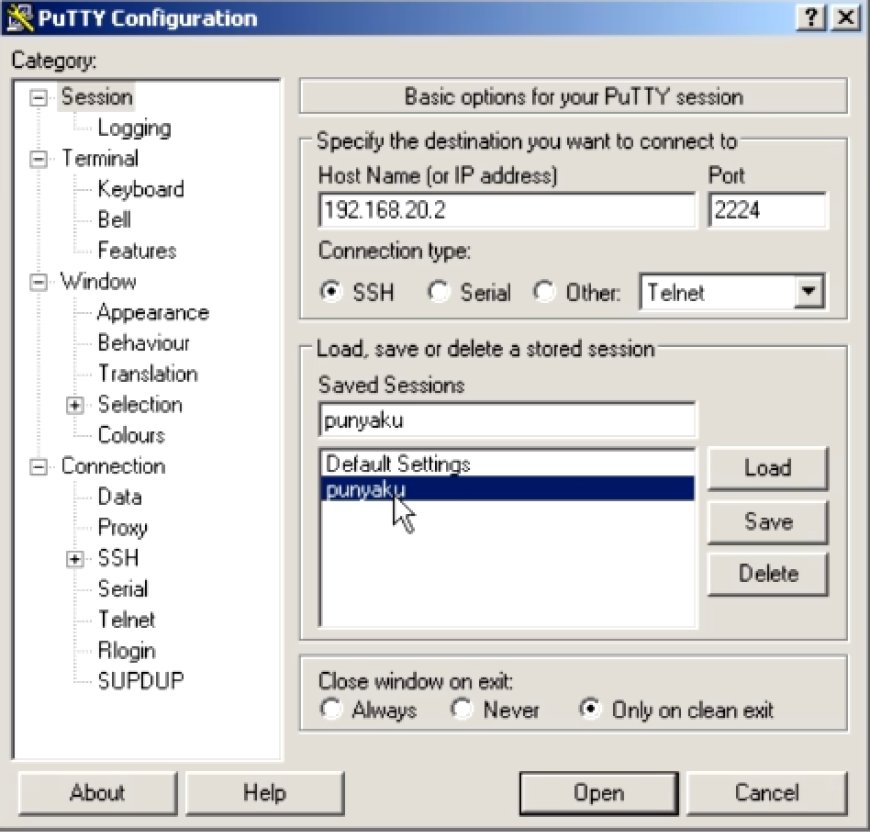

SSH to the router. In my case, ip router/openwrt is = 192.168.20.2 and port for SSH = 2224
Login as root. Then execute the following commands to install ZeroTier package:
opkg update
opkg install zerotier
opkg install ipset

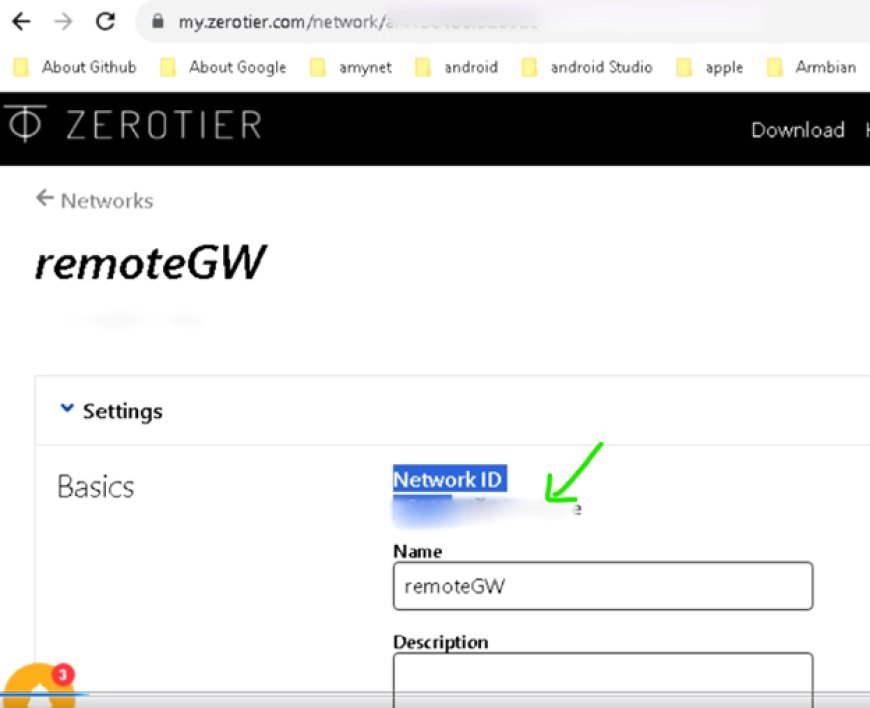

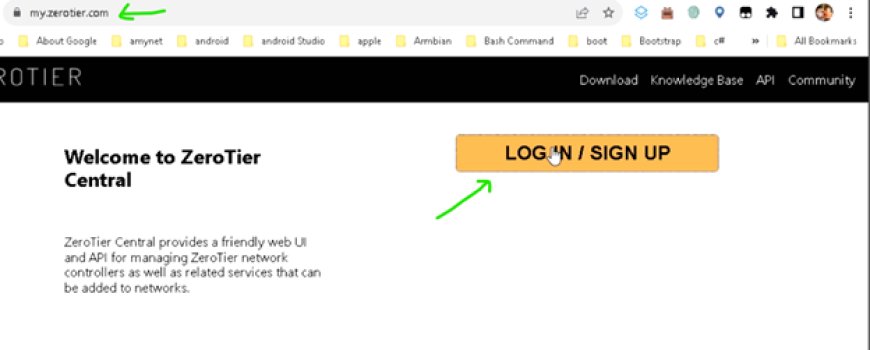

open https://my.zerotier.com and sigin

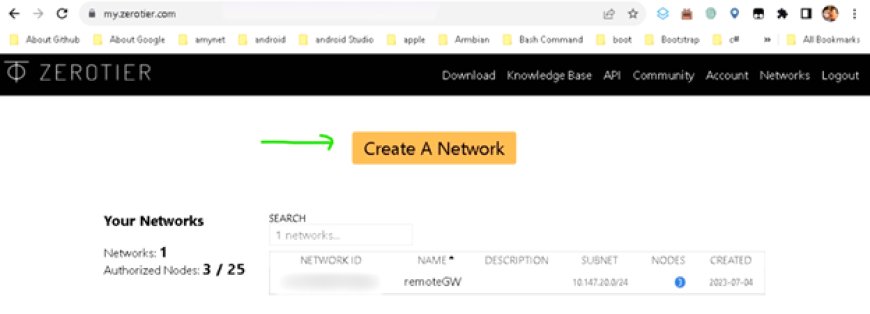

IF you don’t have network configuration on zerotier, you can create.

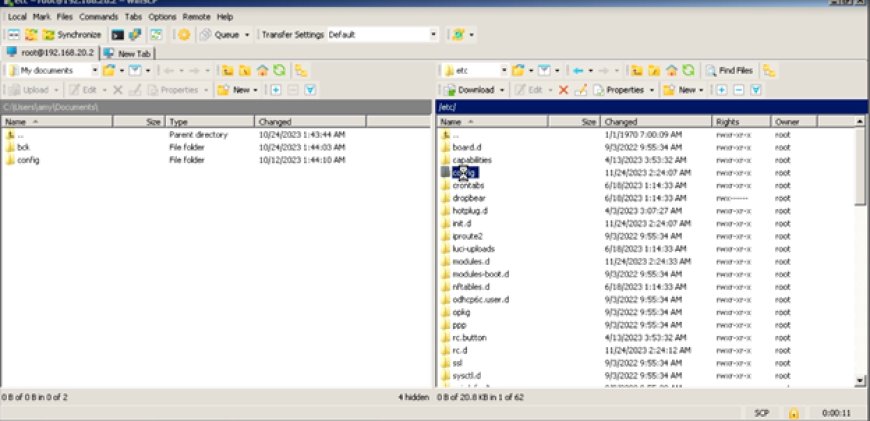

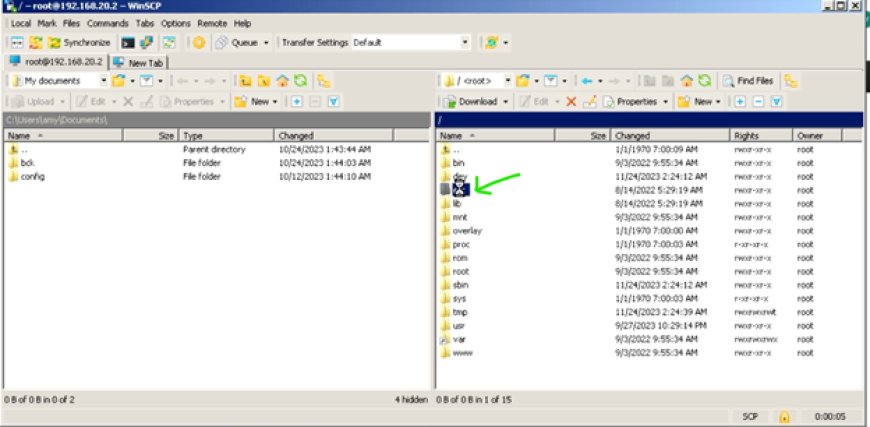

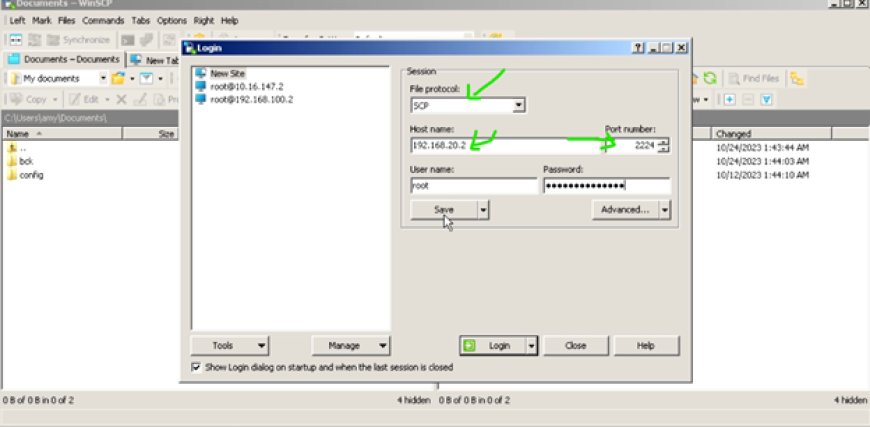

Open WinSCP for simple editing file zerotier configuration with file protocol SCP.
Configuration
ZeroTier
config zerotier 'sample_config'
option enabled '1'
list join 'your network ID'
You should edit the configuration file /etc/config/zerotier to enable ZeroTier
and join into a network. It looks like:
# cat /etc/config/zerotier
config zerotier 'sample_config'
option enabled '1'
list join 'your network ID'
Please replace the code with your own Network ID.
Setup FIREWALL

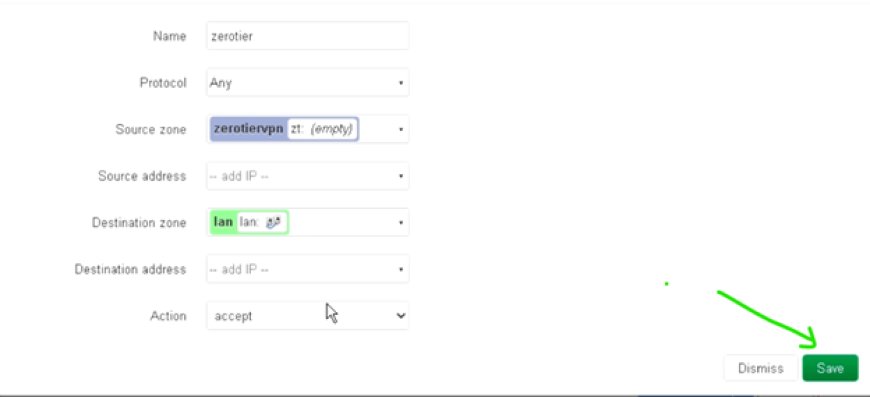

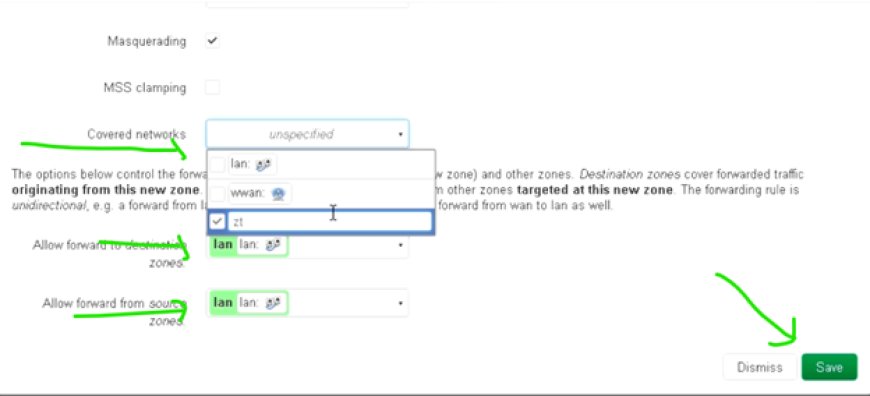

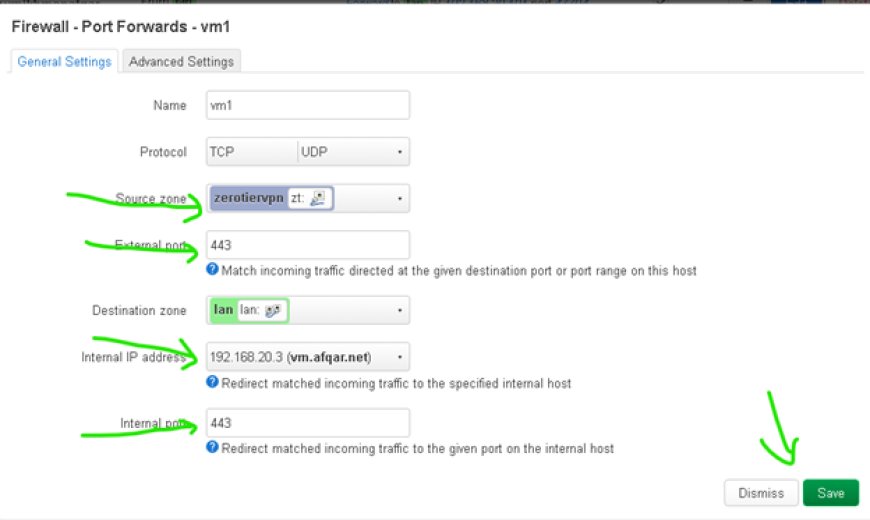

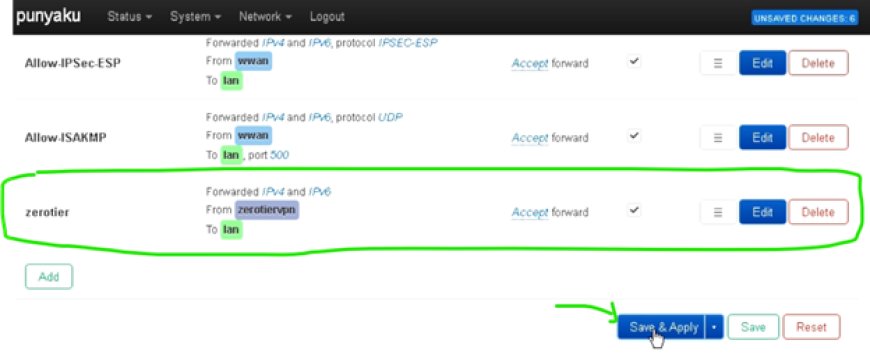

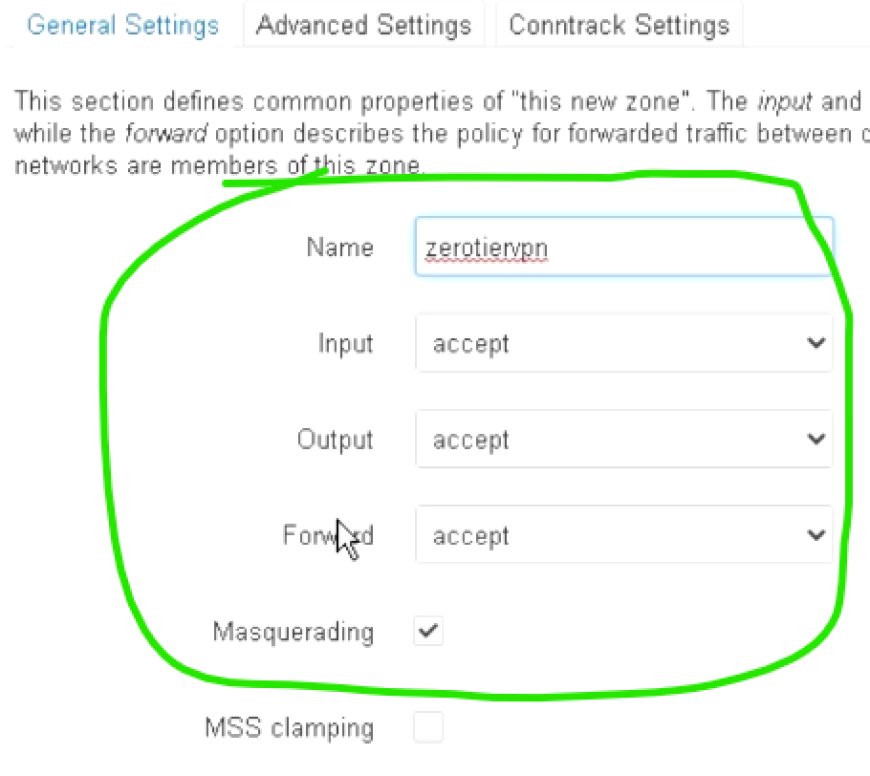

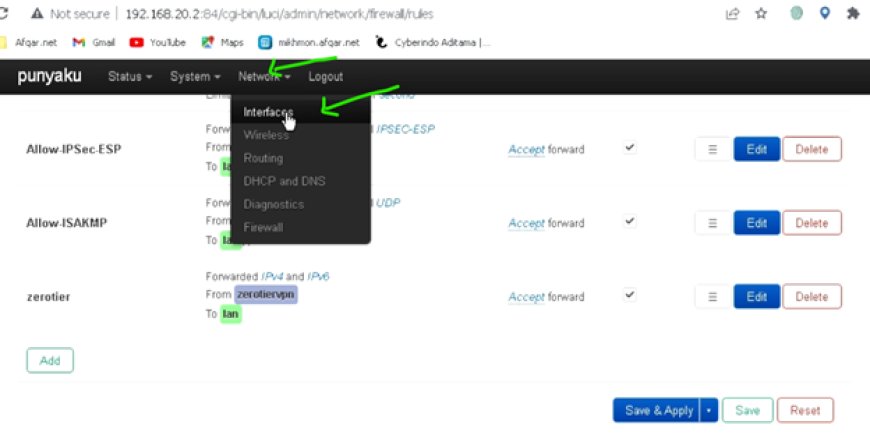

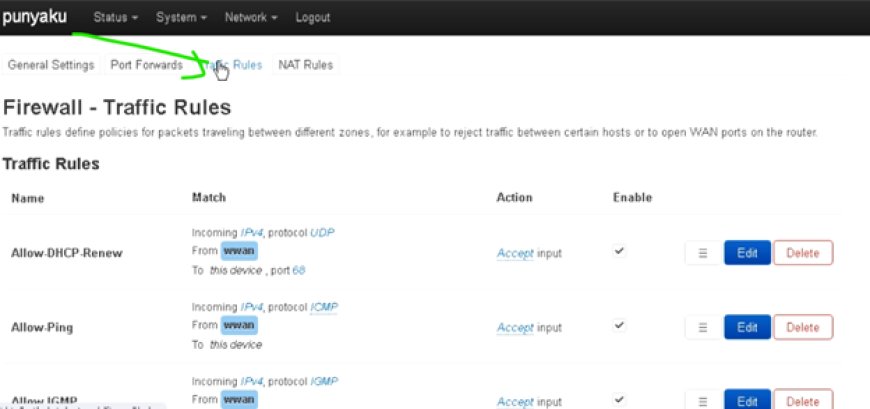

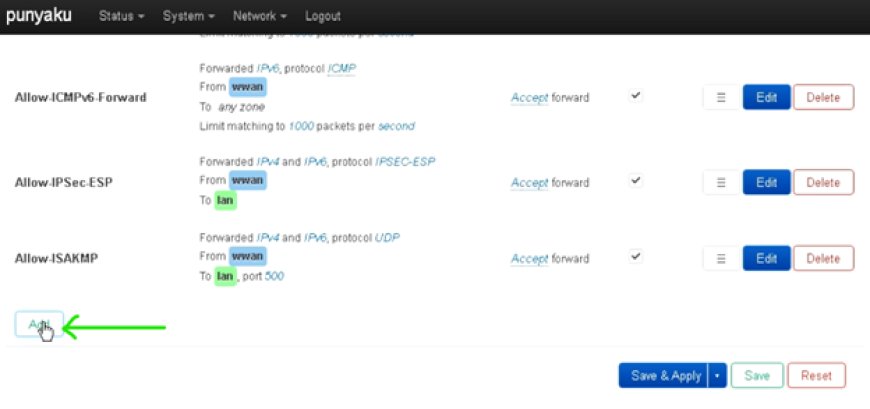

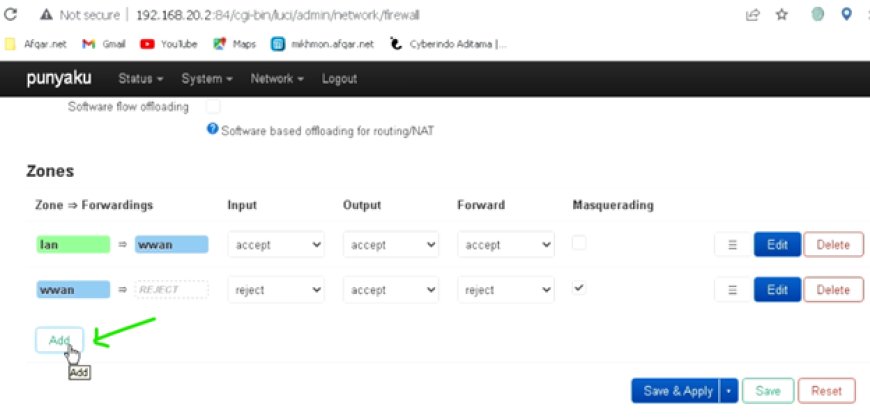

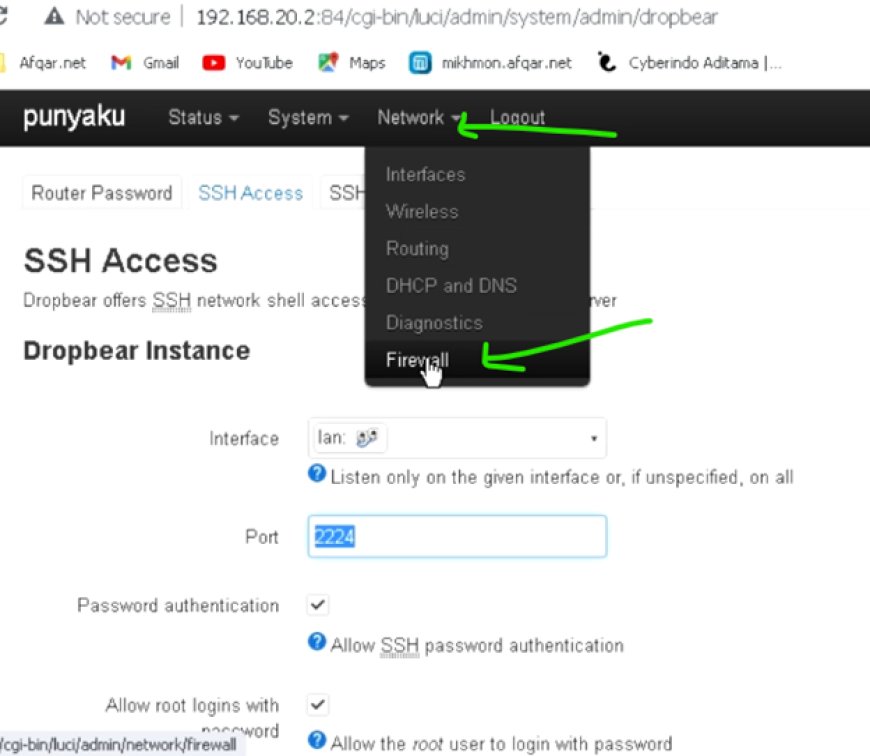

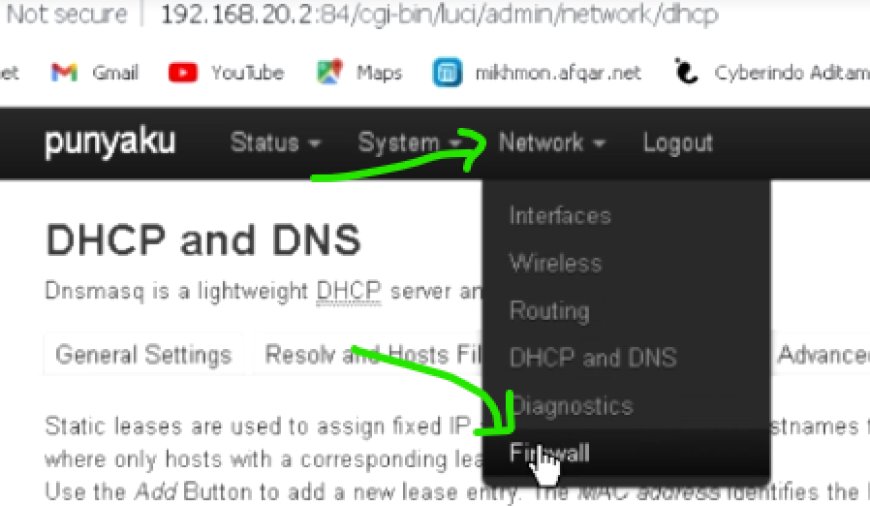

On WebUI openwrt you can following on pictures
You should edit on end line the configuration file /etc/config/firewall to setup firewall configurations. It looks like:
config zone
option name 'zerotiervpn'
option input 'ACCEPT'
option output 'ACCEPT'
option forward 'ACCEPT'
option masq '1'
list network 'zt'
config forwarding
option src 'zerotiervpn'
option dest 'lan'
config forwarding
option src 'lan'
option dest 'zerotiervpn'
config rule
option name 'zerotier'
list proto 'all'
option src 'zerotiervpn'
option dest 'lan'
option target 'ACCEPT'
Start ZeroTier Service
/etc/init.d/zerotier restart
/etc/init.d/firewall restart

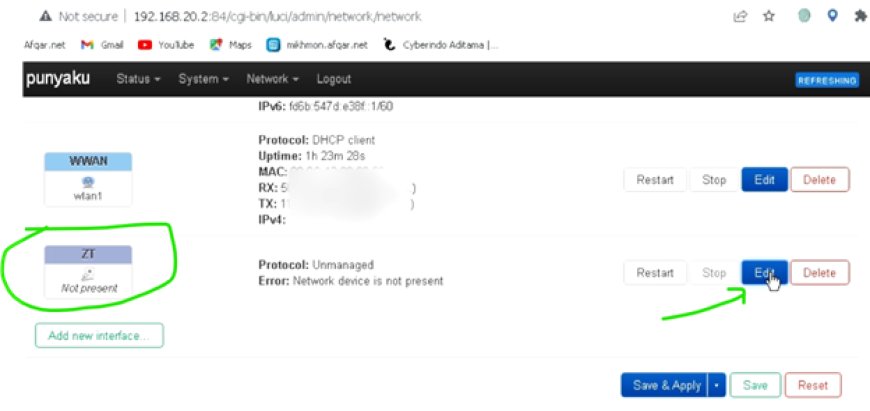

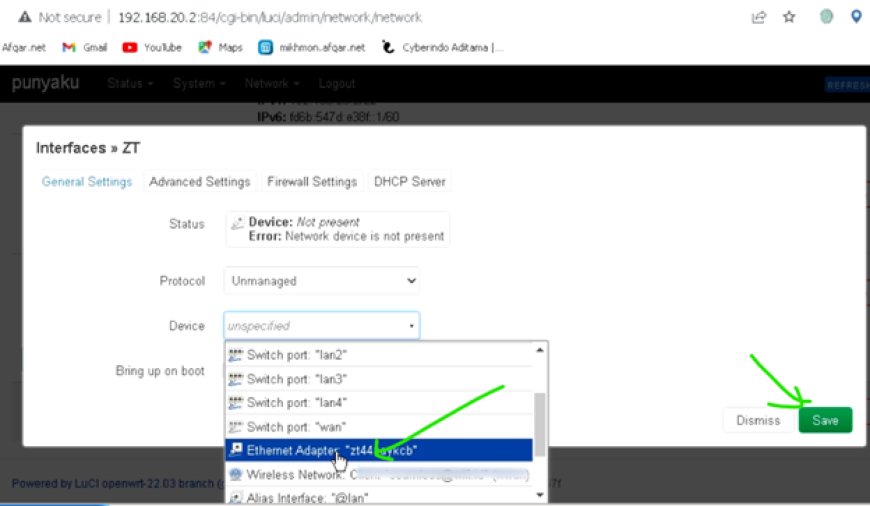

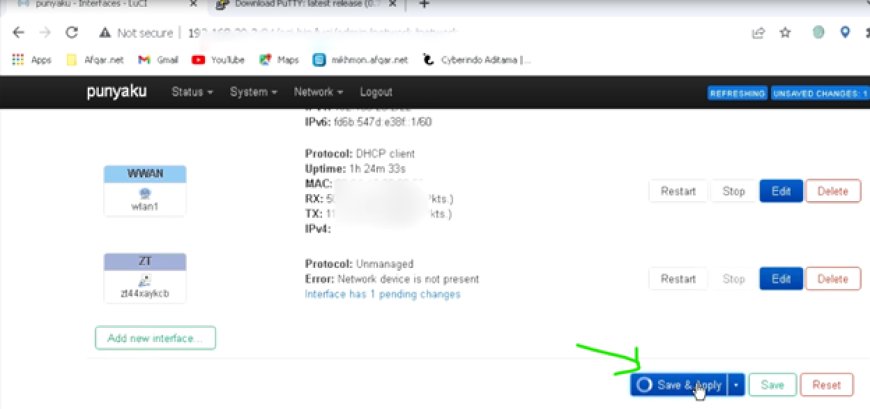

Setup interfaces
If operations success then Physical IP is your Public IP.

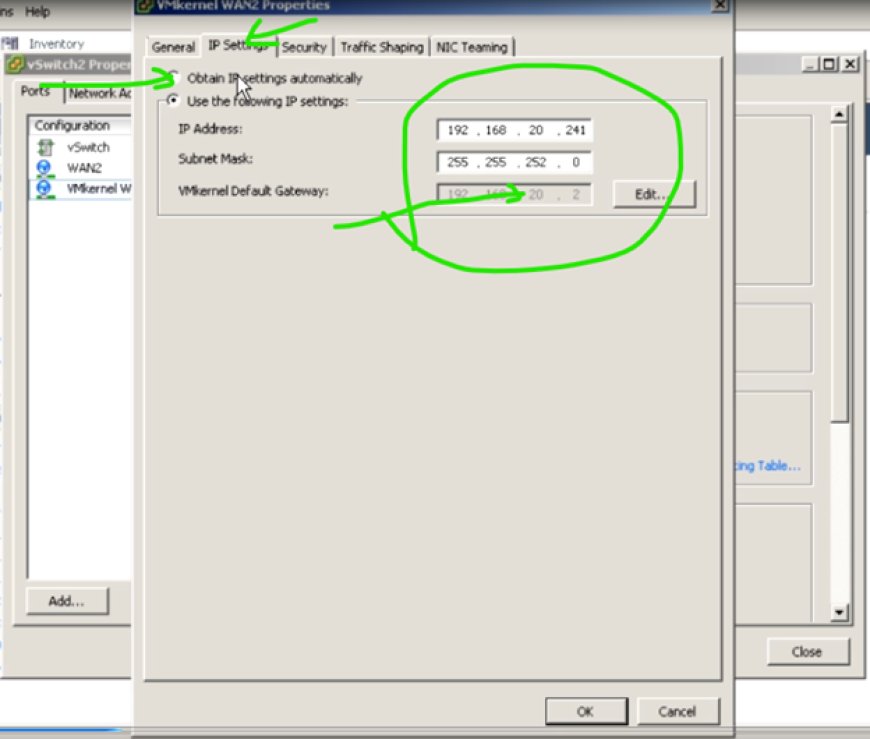

PORT FORWARDING FOR VMWare ESxi
Setting for your WAN connections to Gateway OPENWRT
On mycase my network configuration with Mikrotik Hotspot, you can setup dns static for simple host to your vm esxi.

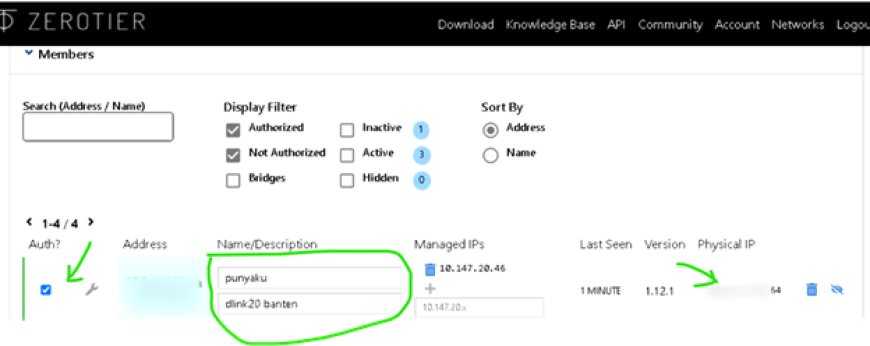

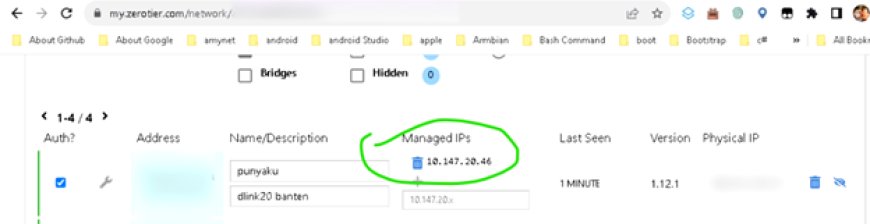

Get your Private IP from zerotier

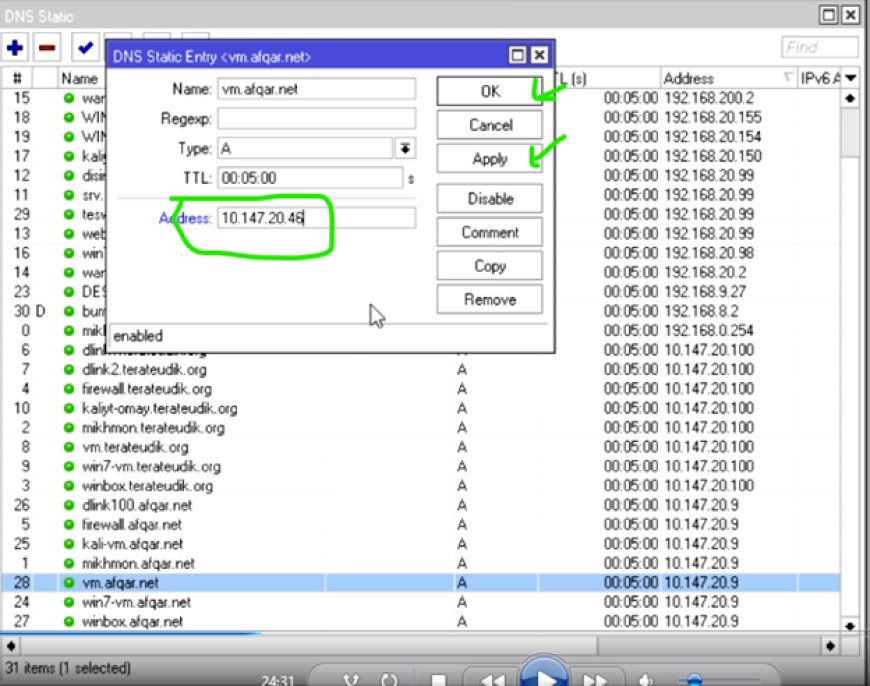

Then setup to your mikrotik

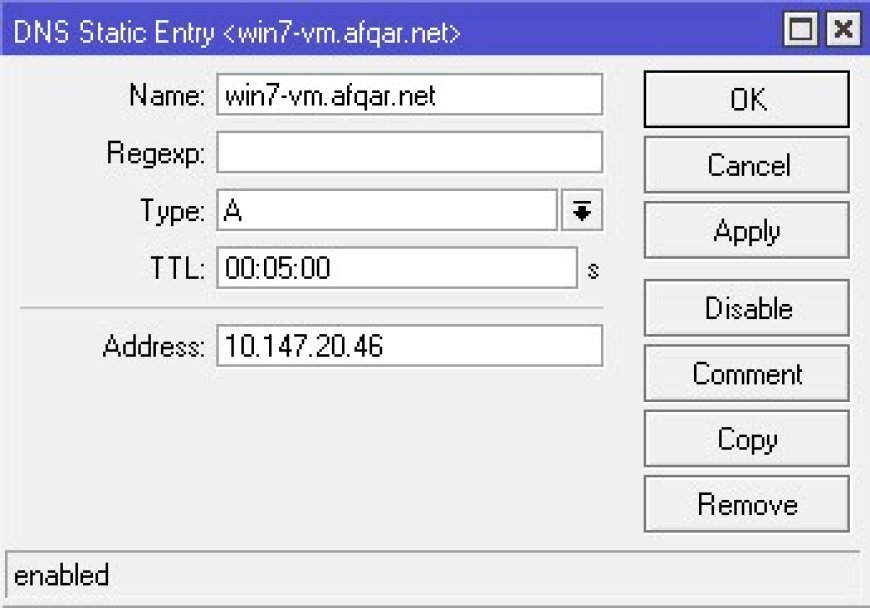

Create new with your private ip on zerotier

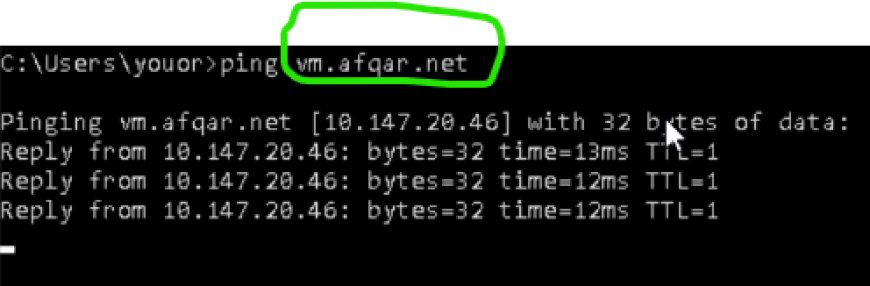

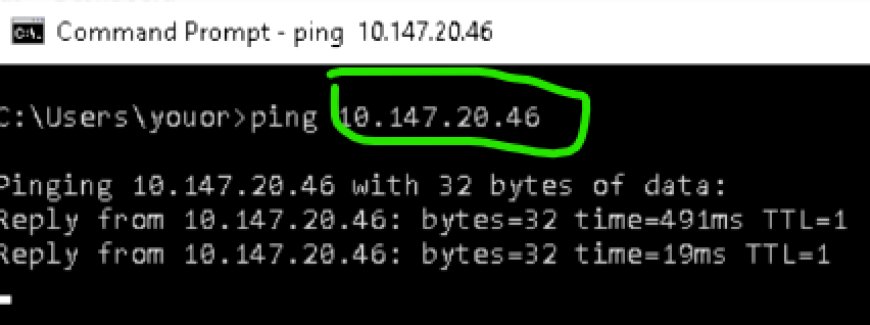

Cek connection to your private ip from zerotier
Cek connections with new host

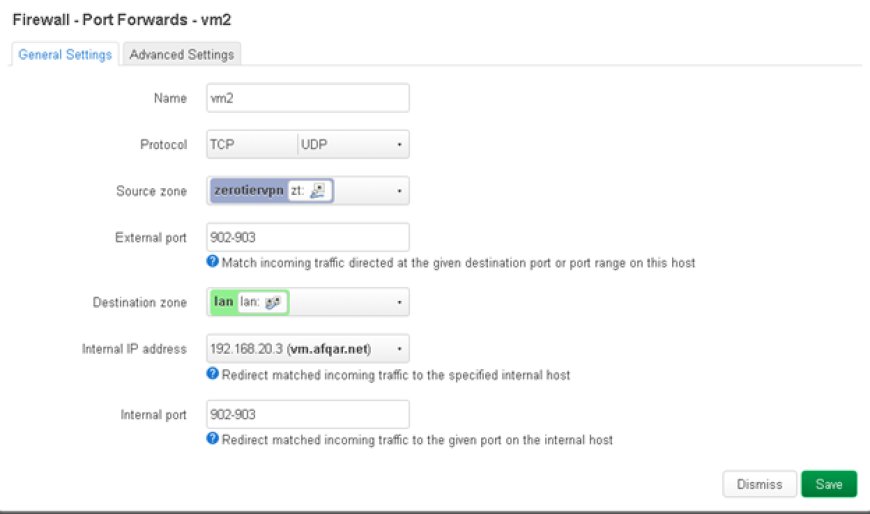

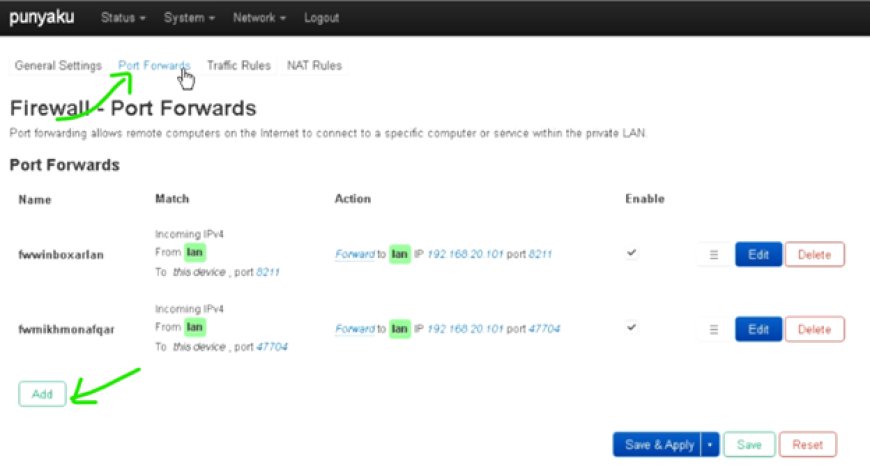

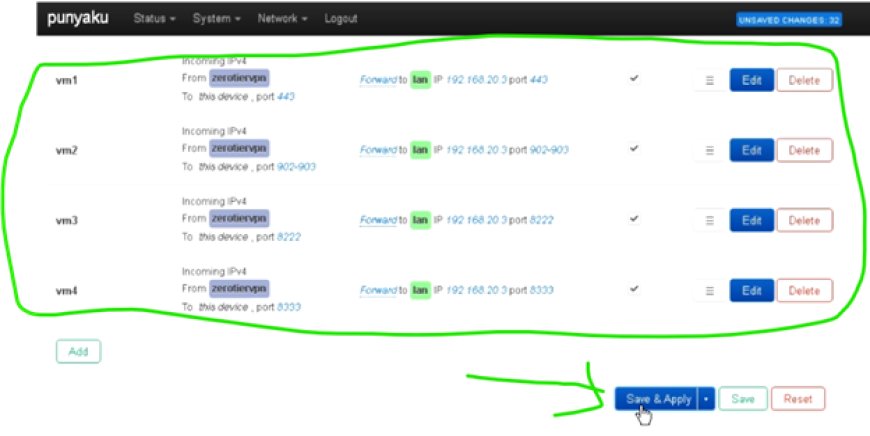

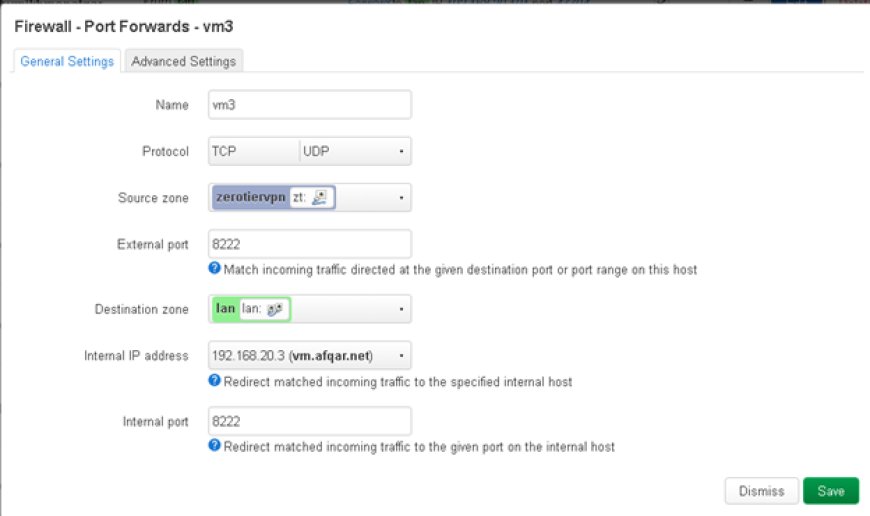

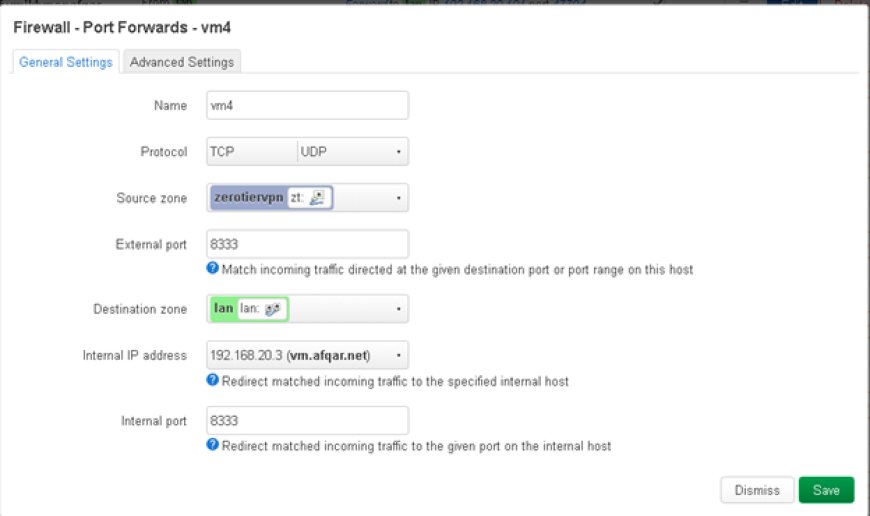

Setup forwarding for esxi port from OPENWRT

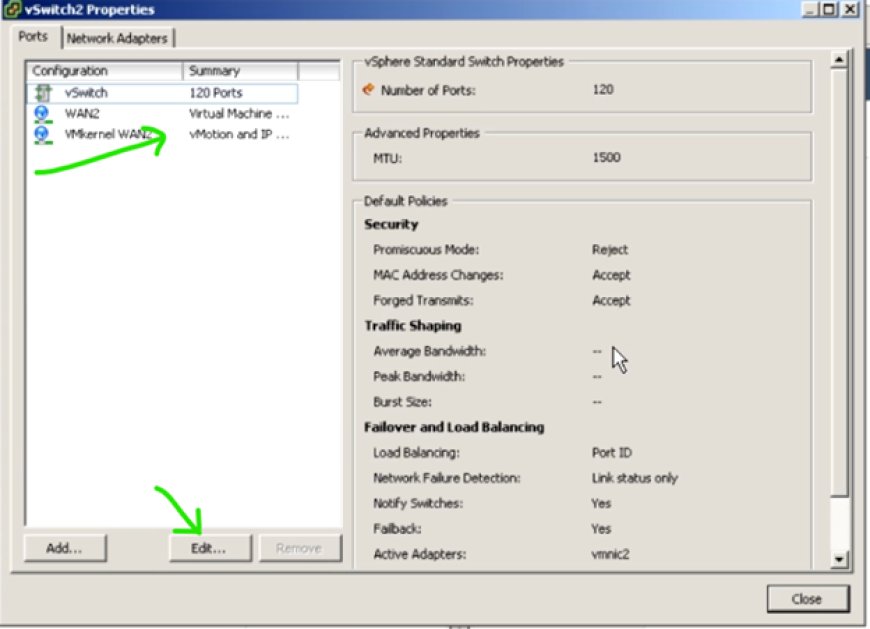

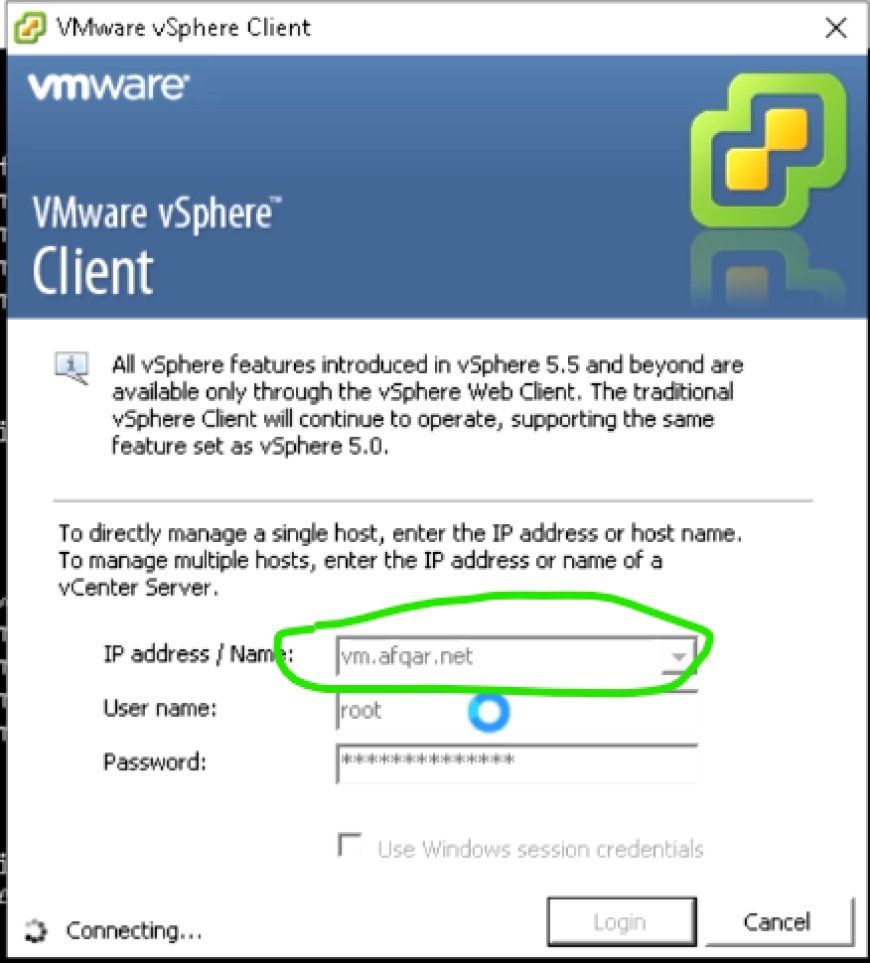

Connect your host with vSphere

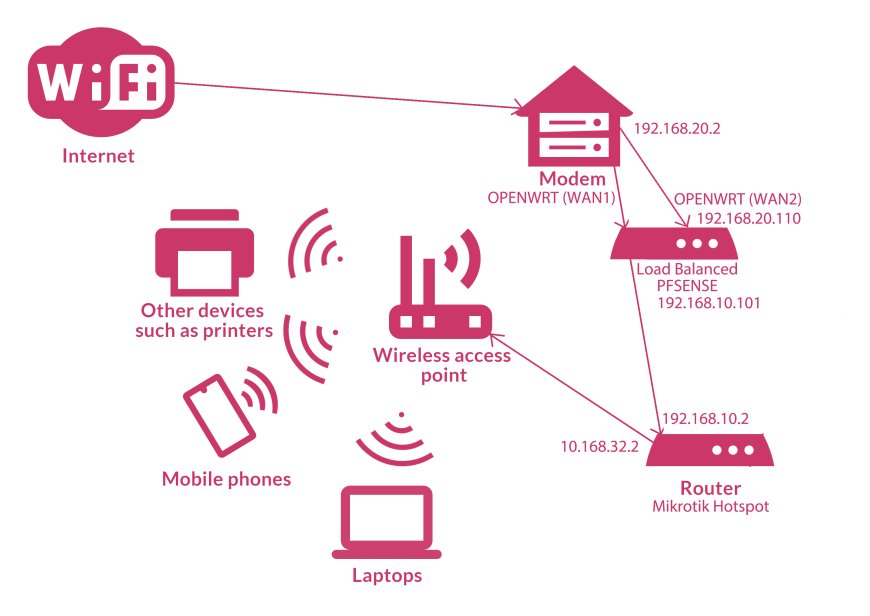

This for details my Network Configurations, physically it is assumed to be like this
FORWARDING FOR PFSENSE
Setup on openwrt
Make forwarding/NAT on Pfsense

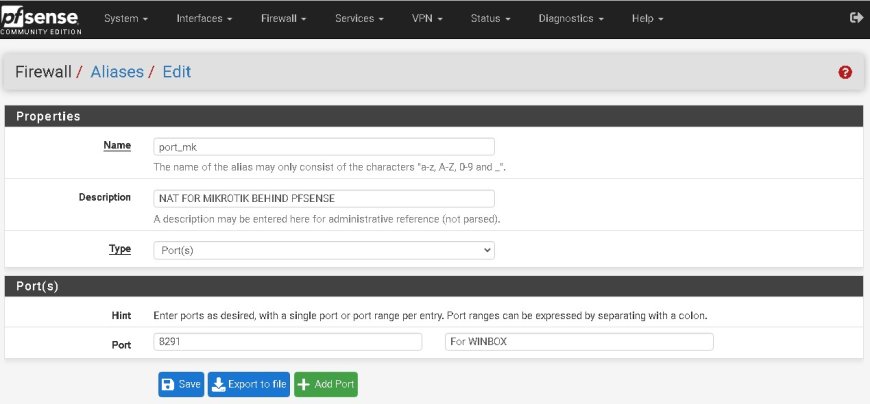

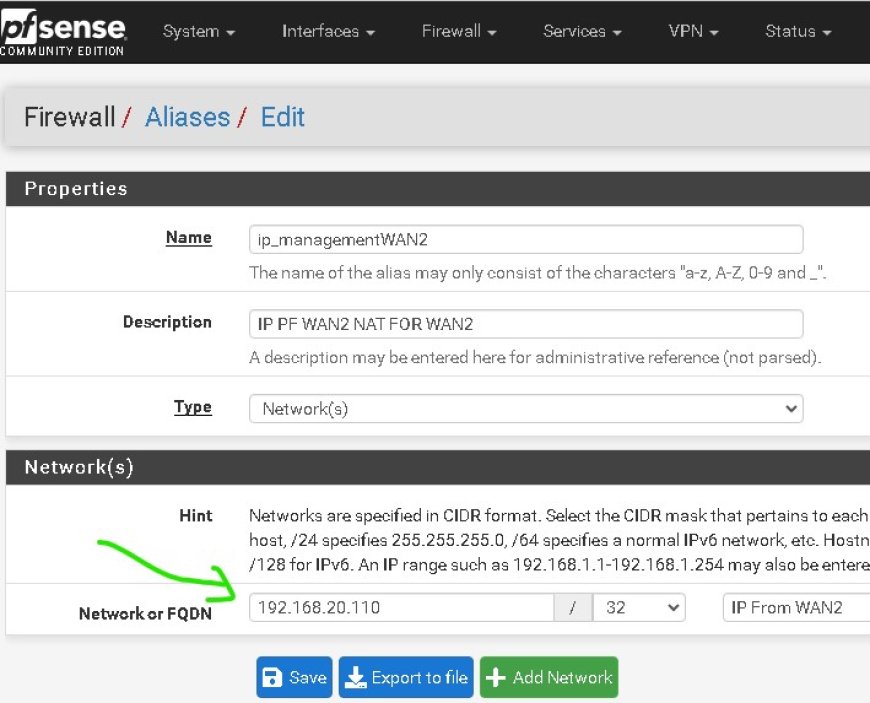

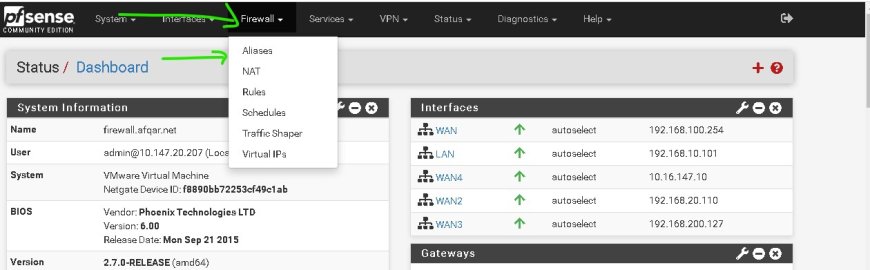

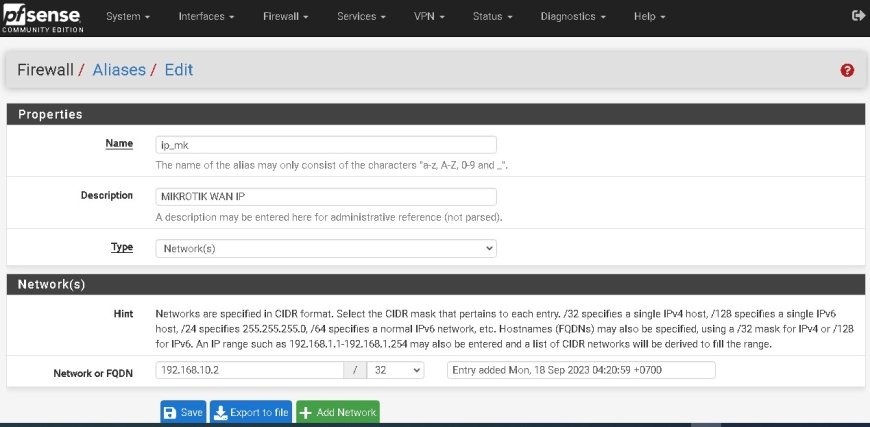

Create alias for simple configuration

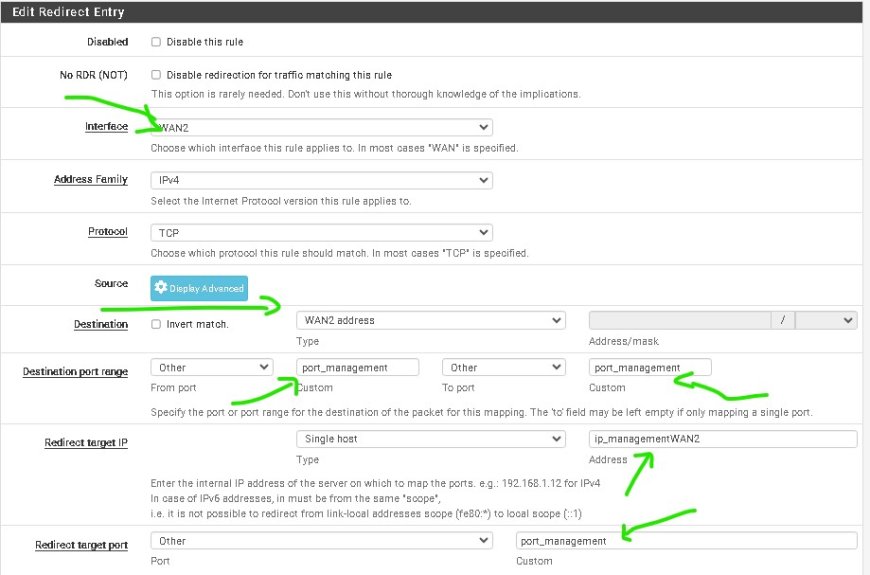

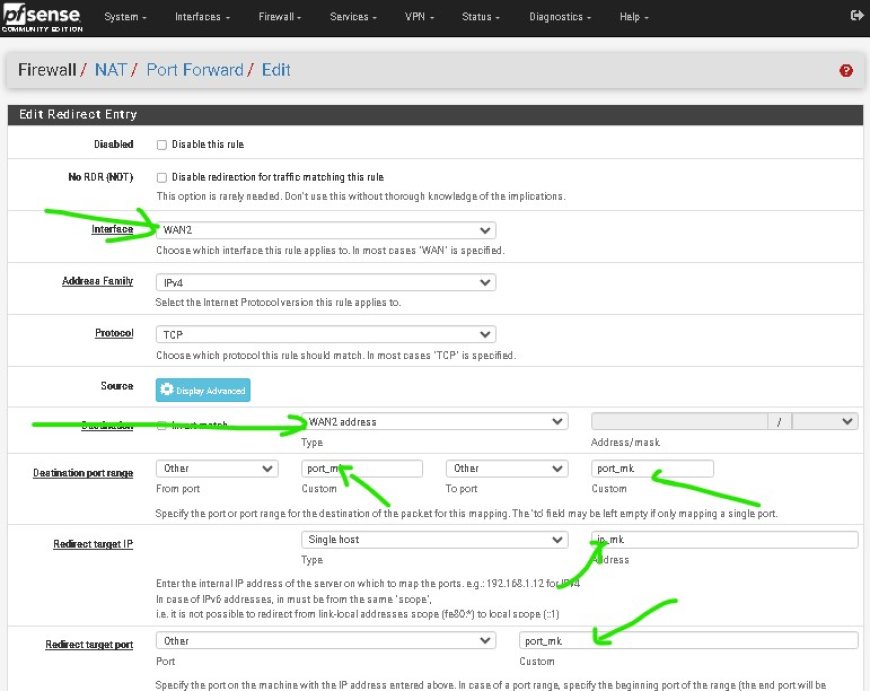

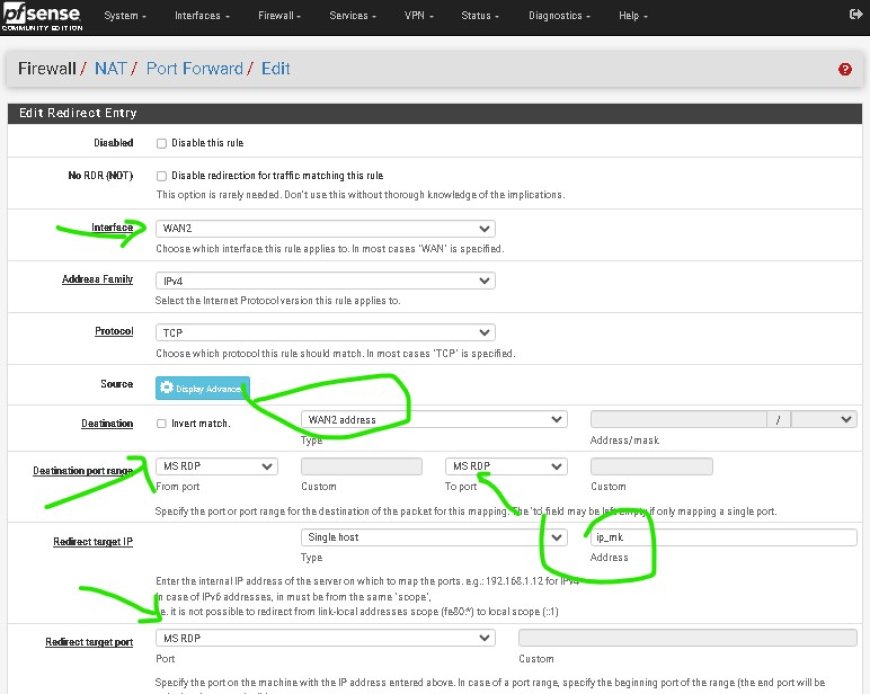

Create NAT

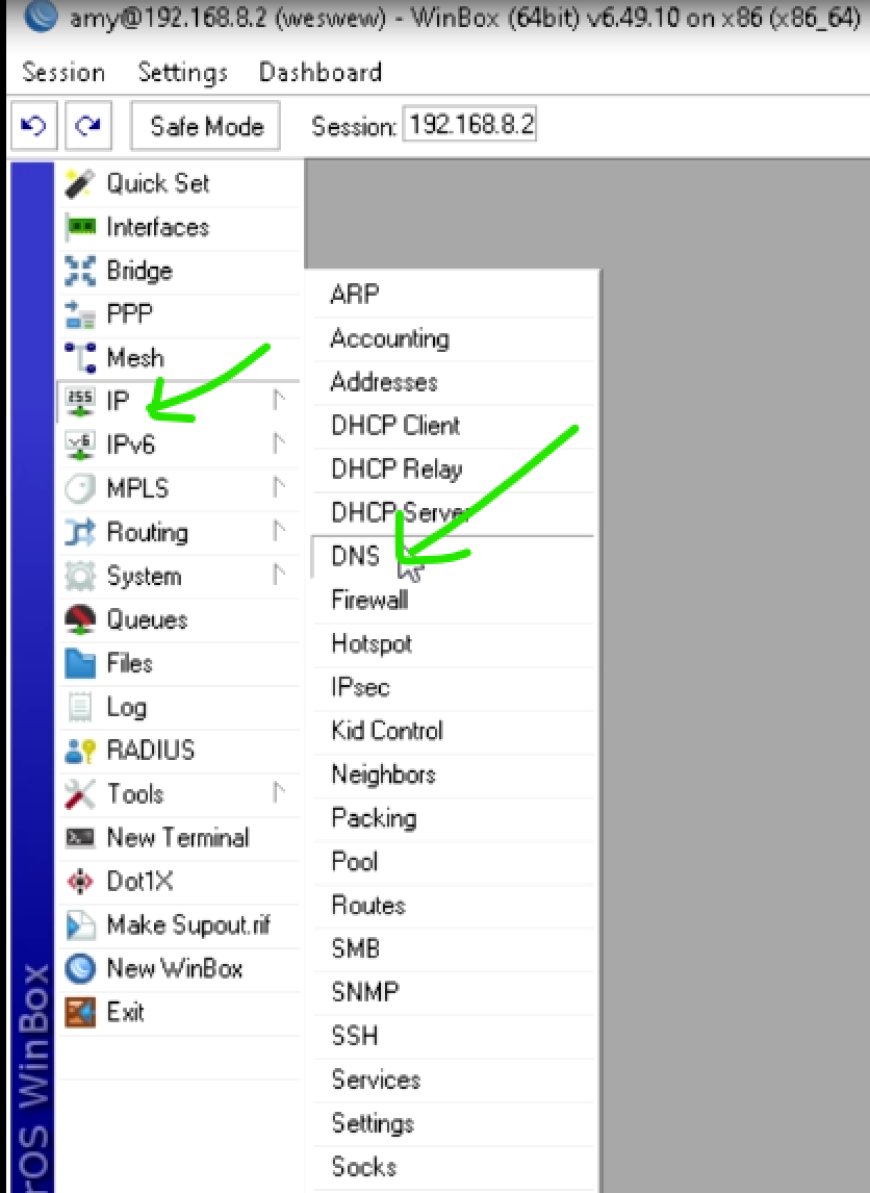

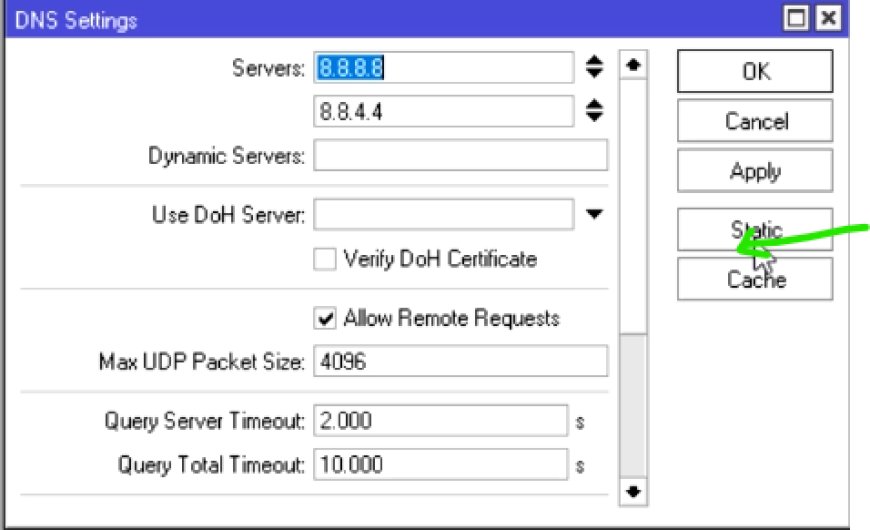

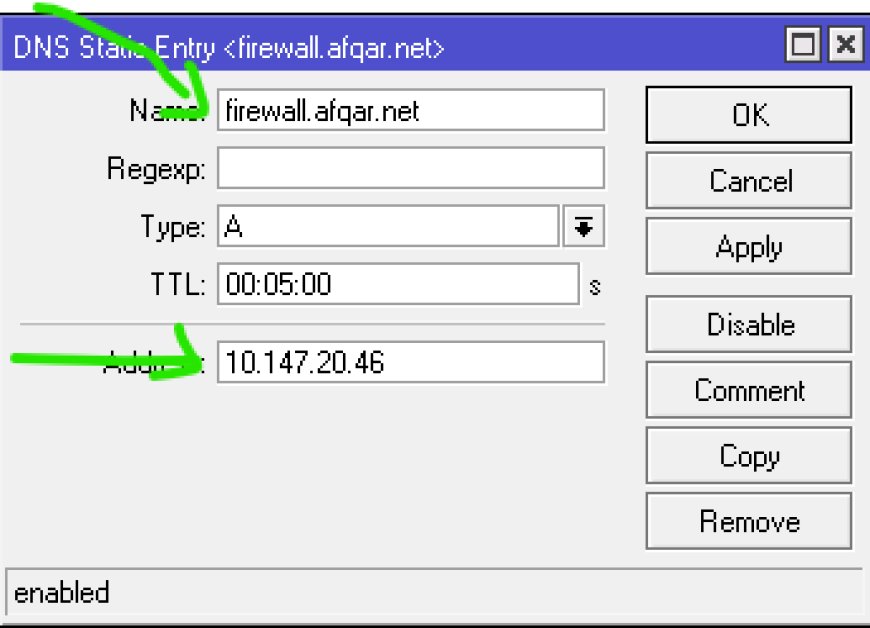

Then setup to your DNS Static on your local mikrotik hotspot with ip private zerotier
Check with internet connections

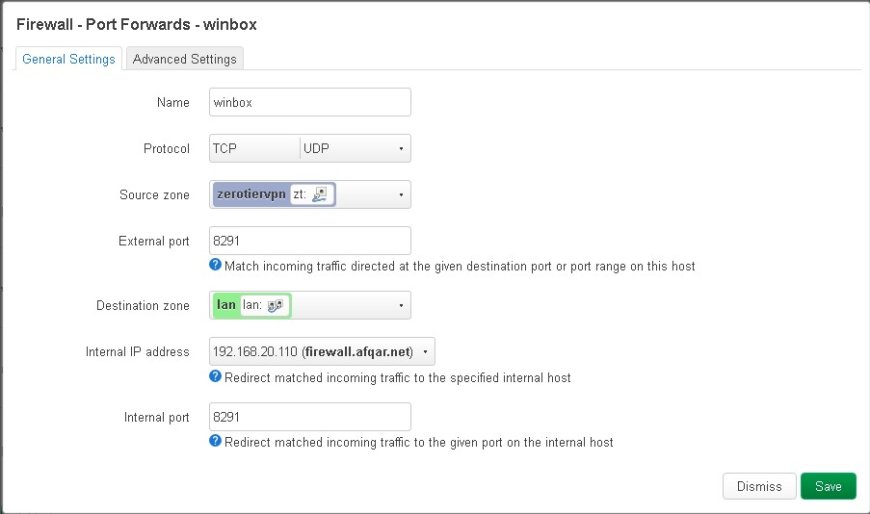

Port forward/NAT for WINBOX
create NAT on PFSENSE

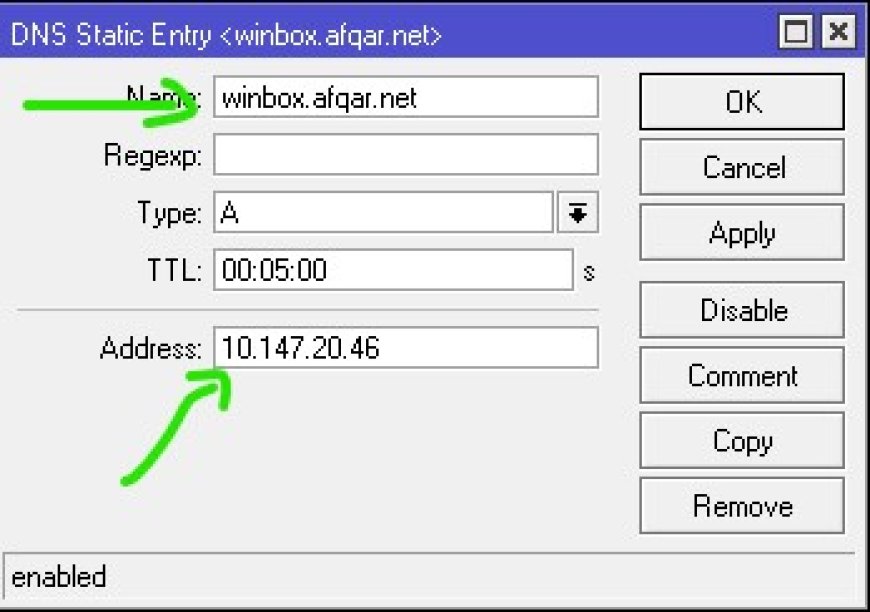

Then setup to your DNS Static on your local mikrotik hotspot with ip private zerotier

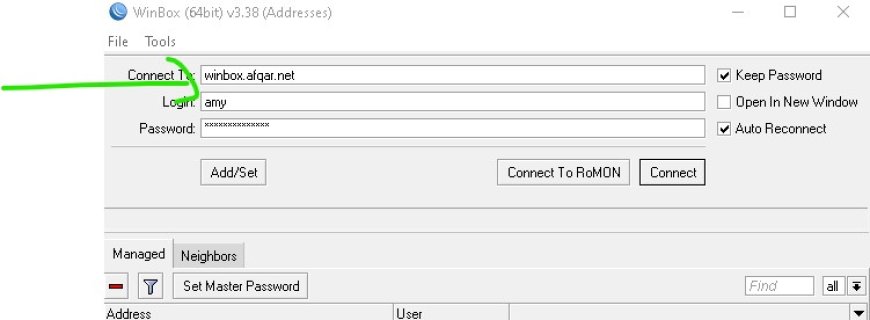

Connect winbox by internet connections

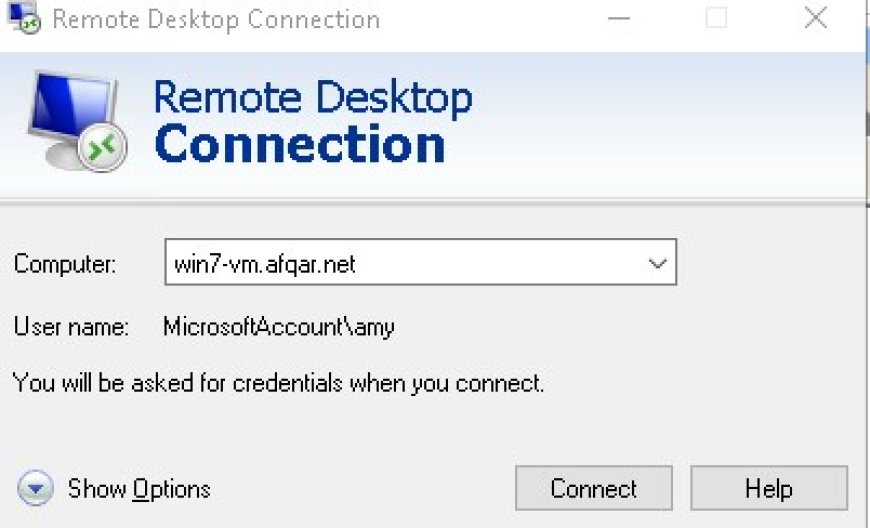

How about Remote Desktop Connections with hotspot client.

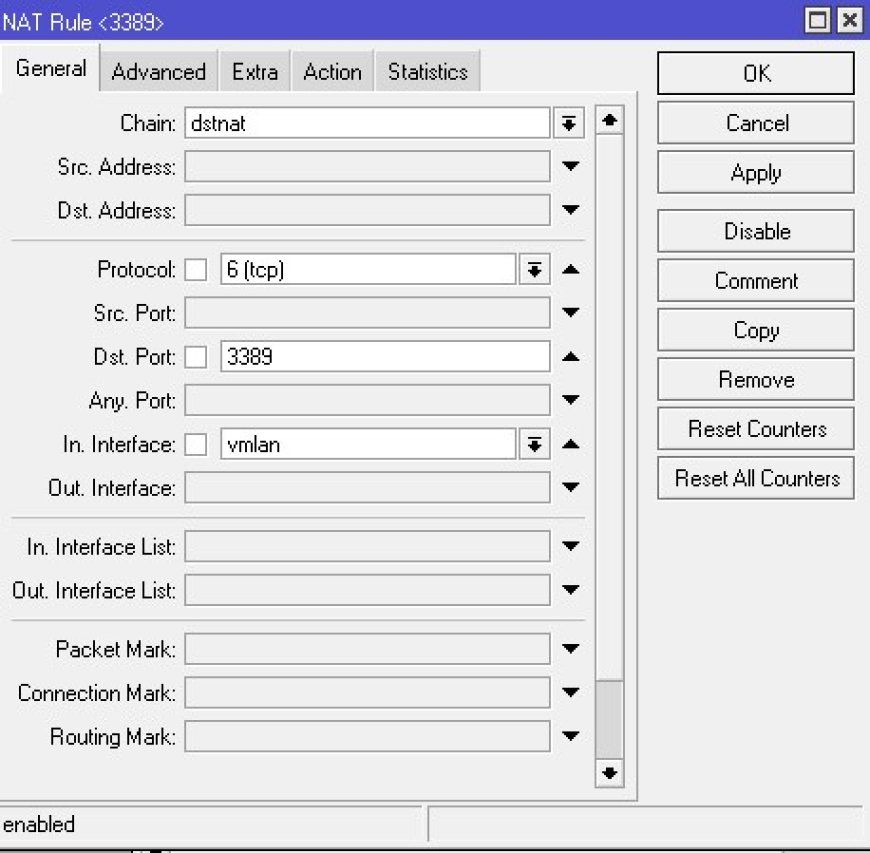

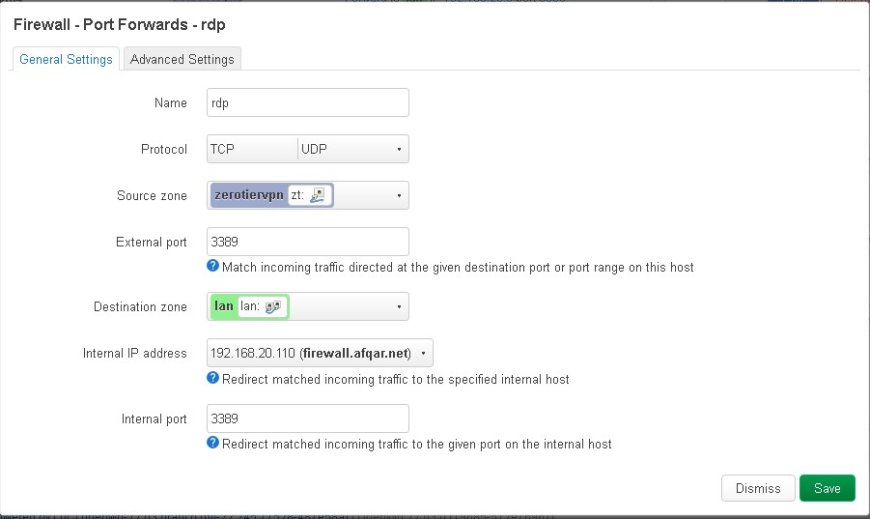

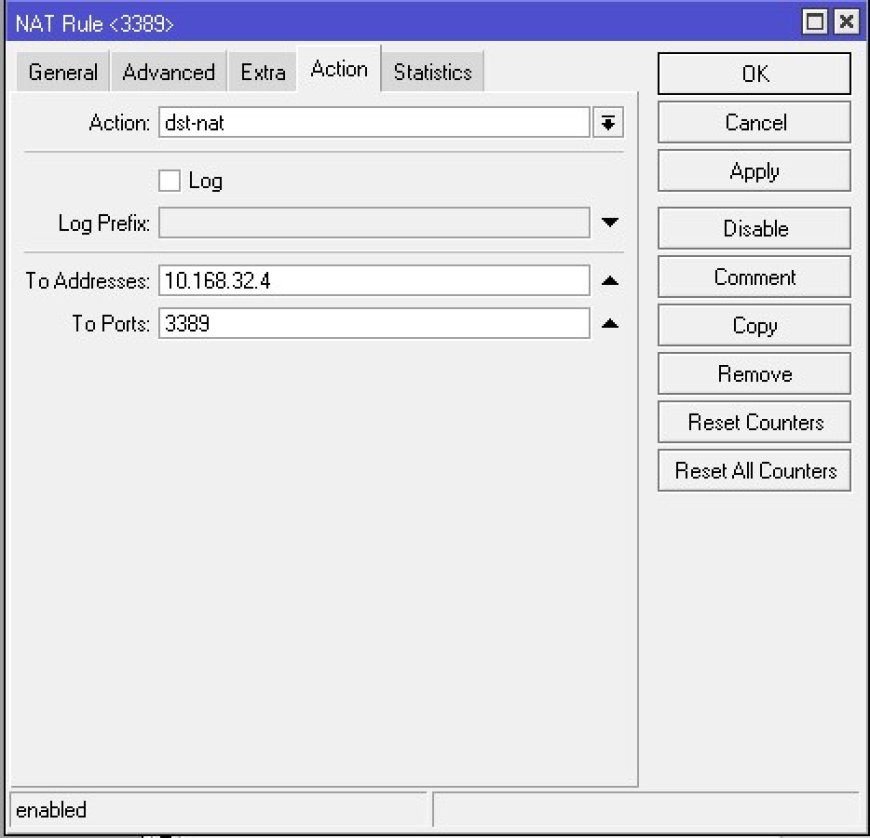

setup nat from mikrotik
setup dns static from local with private ip zerotier
and test your internet connection to Remote Desktop
OK Finish.
