Mikrotik Basic Setup
Disini bisa paham Mikrotik.
SETUP MIKROTIK BASIC SETTING
I think you already understand, so there are not many pictures included for learning.
If you still don't understand, please visit our channel : https://www.youtube.com/@disiniaja-id
Or
open the following link : https://disiniaja.id/mikrotik-7-11-2-stable-x86-on-vmware-esxi
Let’s begin. Only here can we understand what we don't know
For secure reason plz Change default user admin by winbox.
1. Copy default user admin
2. Set username and password for newuser with privilege group full
3. Then exit winbox
4. Login winbox by newuser
5. Delete default user admin
/interface list
add name=LAN
add name=WAN
/ip pool
add name=pool-disiniaja ranges=192.168.0.100-192.168.0.254
/interface ethernet
set [ find default-name=ether3 ] name=lan
set [ find default-name=ether4 ] name=wan
/interface list member
add interface=wan list=WAN
add interface= lan list=LAN
/ip address
add address=192.168.0.2/24 comment=Tolan interface=lan network=192.168.0.0
/ip dhcp-server
add add-arp=yes address-pool=pool-disiniaja authoritative=after-2sec-delay \
disabled=no interface=lan lease-time=6h name=dhcptoLAN
/ip dhcp-server network
add address=192.168.0.0/24 dns-server=192.168.0.2 domain=hotspot-disiniaja.org gateway=\
192.168.0.2 netmask=24 ntp-server=\
203.89.31.13,202.65.114.202,120.25.115.19
/ip dns
set allow-remote-requests=yes cache-size=8192KiB servers=8.8.8.8,8.8.4.4
/ip firewall nat
add action=masquerade chain=srcnat comment="NAT WAN" out-interface=\
wan
WAN with dynamic IP
/ip dhcp-client
add dhcp-options=hostname,clientid disabled=no interface=wan
reboot, and plz test for WAN with dynamic ip
WAN with static IP
/ip address
add address=192.168.20.128/22 comment=Towan interface=wan network=192.168.20.0
/ip route
add comment=route_WAN distance=1 gateway=192.168.20.2
reboot, and plz test for WAN with static IP
Allows Network Access Only from DHCP Client on Mikrotik
This setting is intended for users who often change their computer's IP from obtainable (DHCP Client) to static. This change can cause the policies that have been set to become messy, and often even cause IP Conflicts to occur, which will make it difficult to detect where the IP Conflict comes from.
However, for network admins who use Mikrotik as a router as well as a DHCP server, now you don't need to worry, because this configuration can force clients to reset their computer's IP to Obtain IP (DHCP Client). Because if the user forces to use Static IP, the result will be that the computer will not be able to connect to the internet or to other networks that pass through the Mikrotik router.

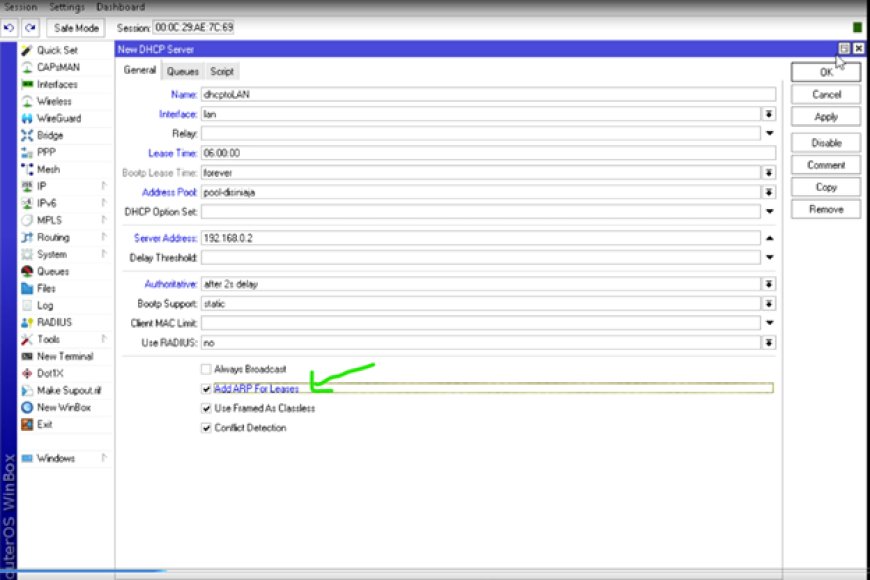

Configure the DHCP Server to add ARP when a DHCP-lease occurs. Click IP–>DHCP Server, edit DHCP, check Add ARP for leases

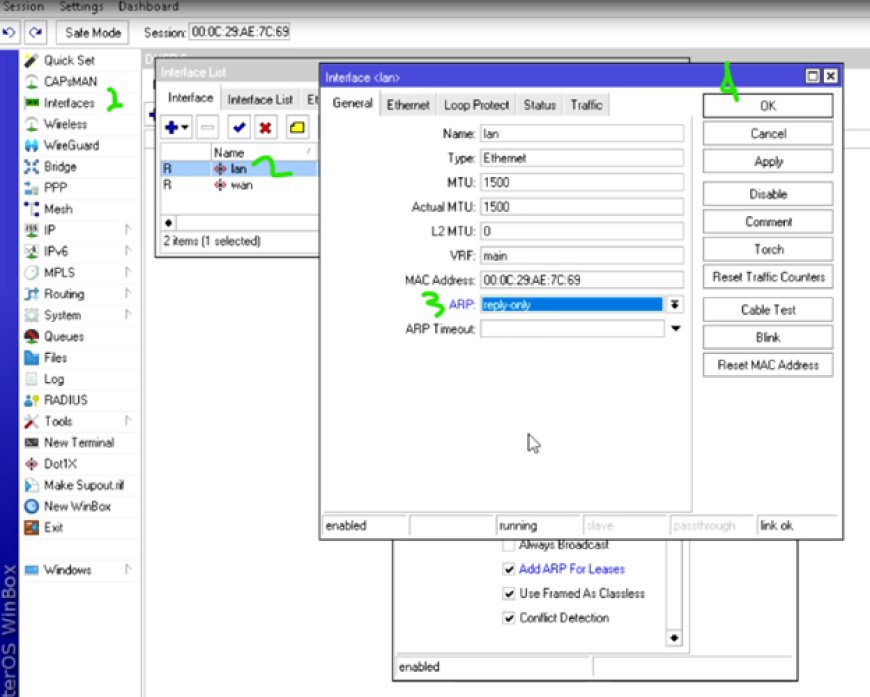

Click Interface, then double click the LAN interface used as the DHCP interface
Select in the ARP section: Reply-Only

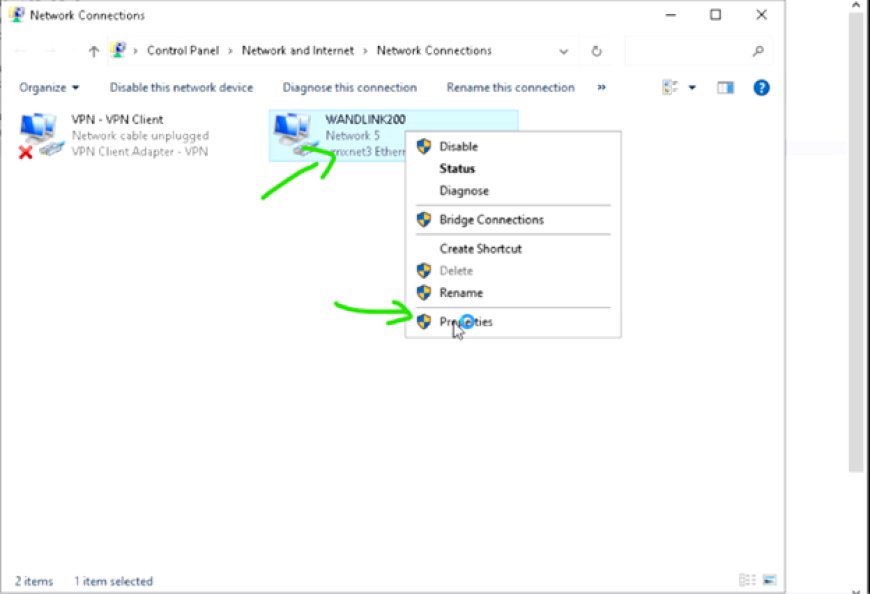

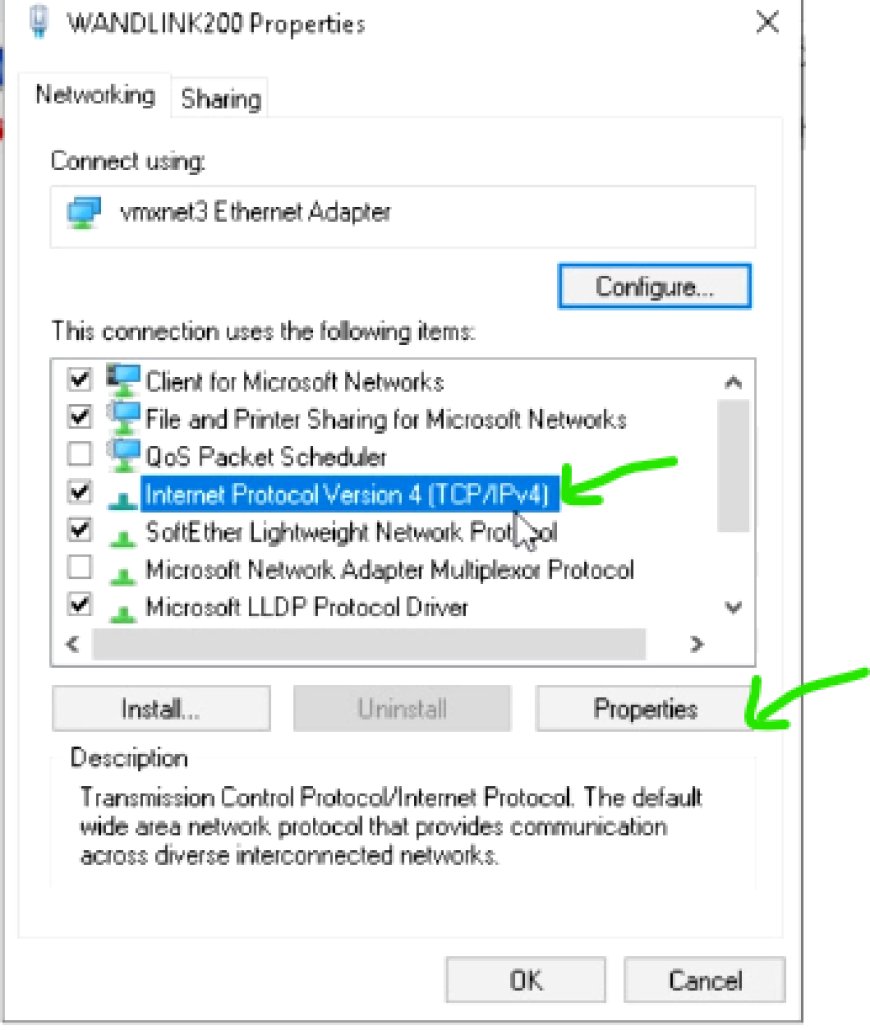

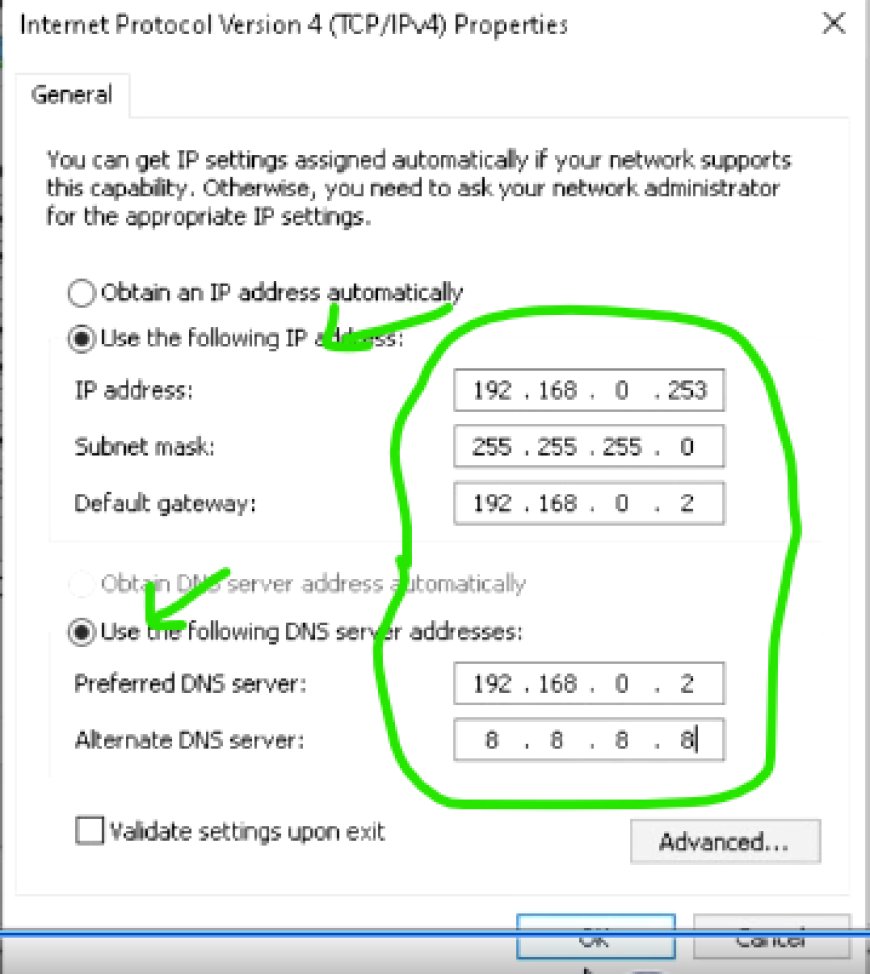

Test For Static Local IP
Open your browser https://disiniaja.id
Vioola….user can’t connect internet.
You can watch this lesson on YouTube to understand better. Don't forget to help our channel to develope further so that, there is nothing that can't be done except https://disiniaja.id.
Greetings of good health and success always.
